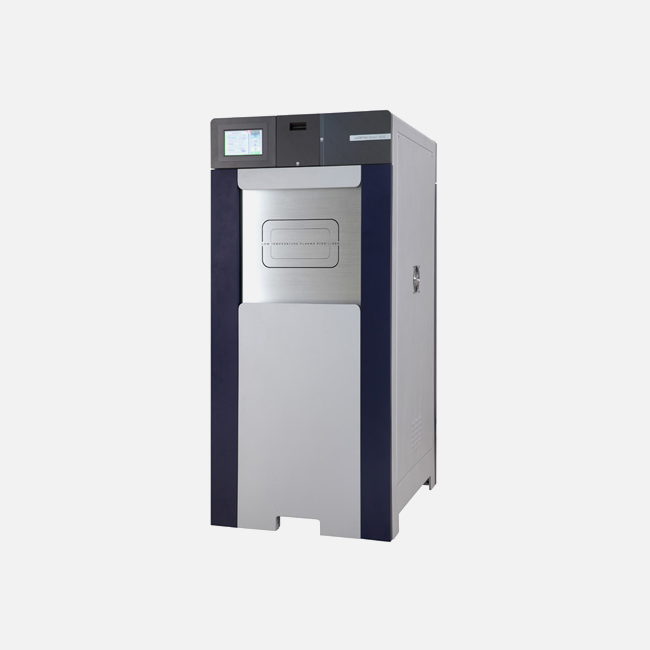

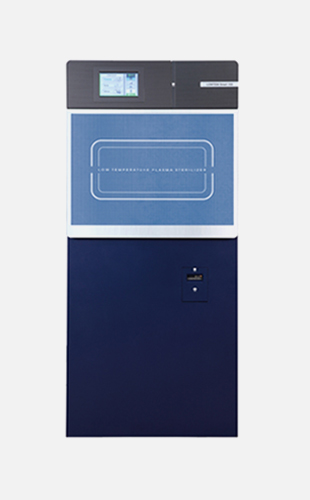

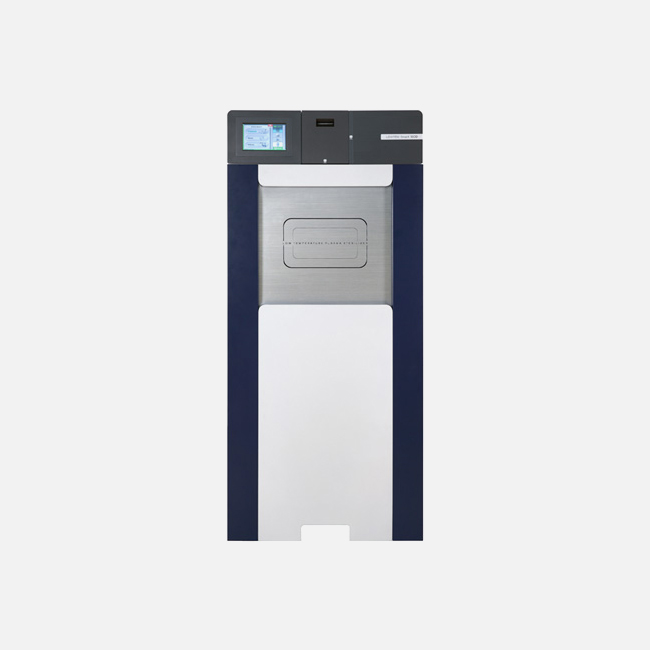

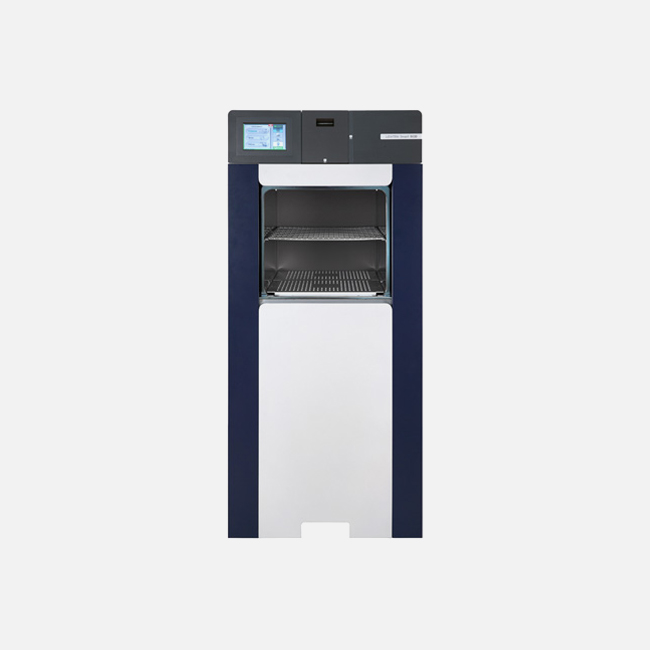

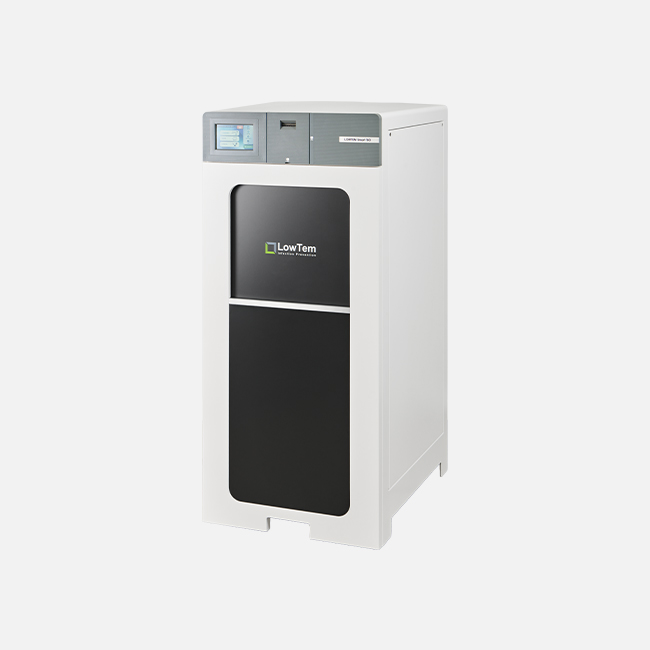

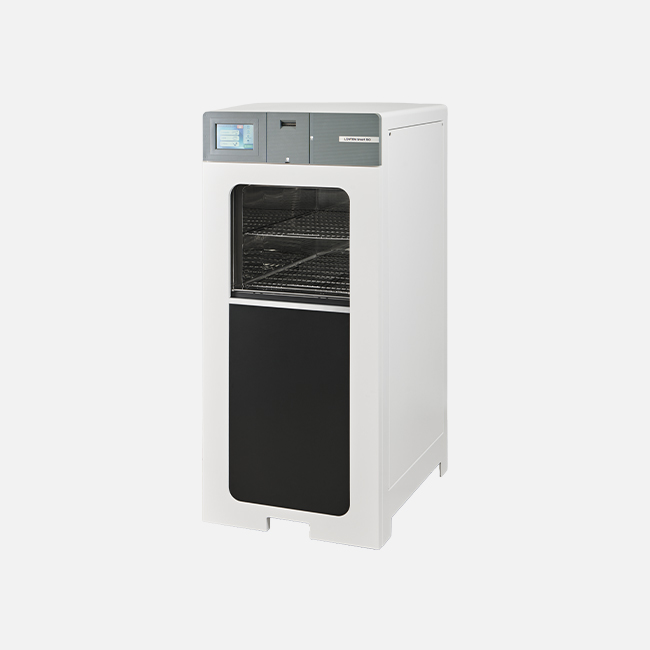

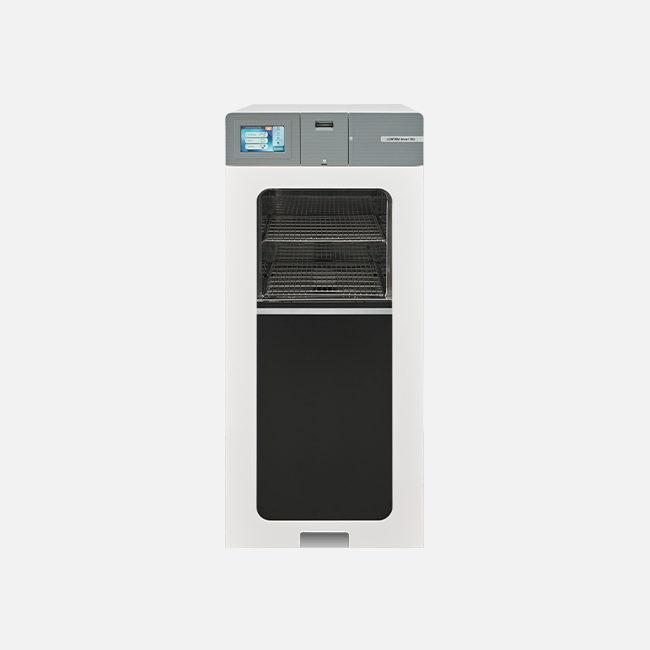

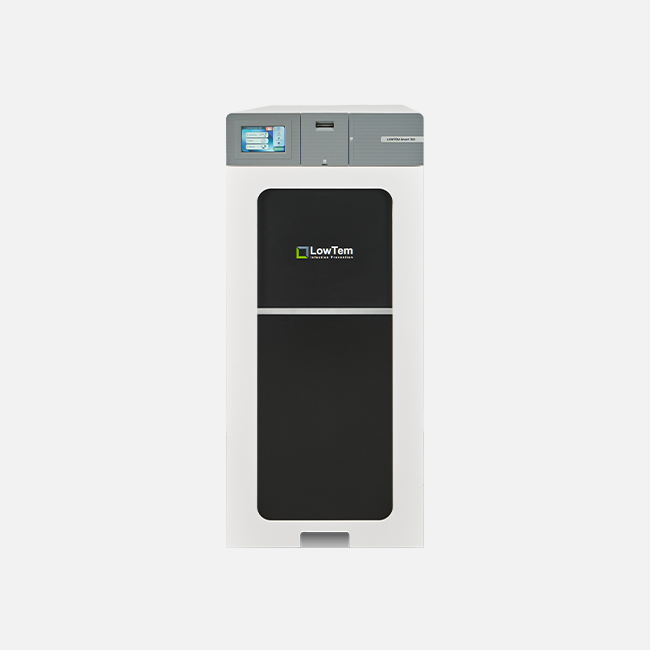

LOWTEM Smart 150
- 1. Rapid Warmup & Dry System
2. Convenient and Safe Sterilizing Agent
3. 7” full touch LCD, Easy Monitoring the Cycle Information
4. Plug and Play
5. USB History Memory
6. Automatic PM Alarm System
7. Built in Thermal Printer, Printout with Actual Cycle Information
8. Login Function
9. Monitoring System
10. Open/Close Foot Switch
11. Sliding Door
This product is a medical device, please read the precautions and instructions for use carefully.

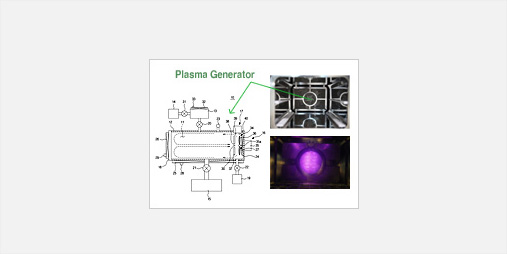

- 1Rapid Warmup & Dry System
1.The world’s first patented “Rapid Warmup and Dry System” allows to overcome the humidity-related problem.
2.LOWTEM Series automatically removes residual moisture through the enhanced drying performance for medical devices in warm up phase.
3.“Rapid Warmup and Dry System” gets rid of Cold Points and maintains same temperature inside chamber, which is very effective for sterilizing the complicated medical devices with its strong penetration power.

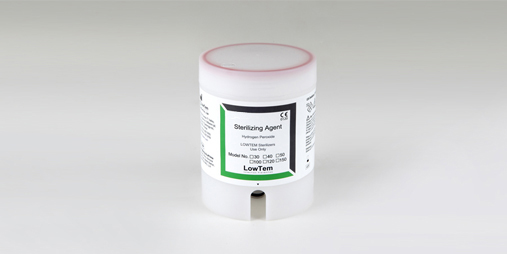

- 2Convenient and Safe Sterilizing Agent
1.“Tank type” sterilant is safe for users to store, to deliver, and to use.
2.The automatic system for changing and installing sterilant tank is convenient and safe for users.
3.LOWTEM Series’ tank type sterilant does not need to be replaced often, as it can be used scores of times.

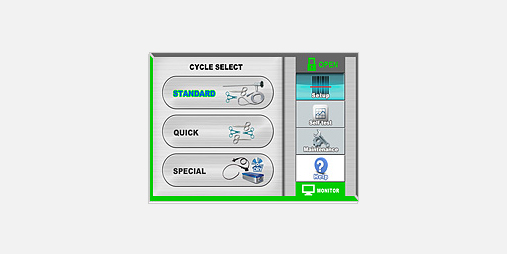

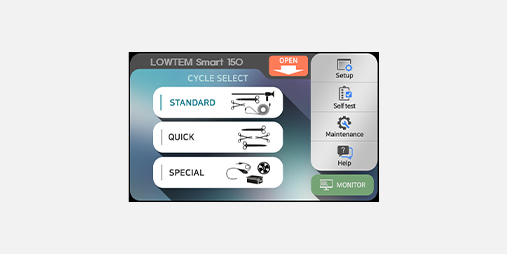

- 37” full touch LCD, Easy Monitoring the Cycle Information
1.LOWTEM Series’ 7”full touch LCD monitor provides with all functions of the machine using simple letters, pictures, and icons.
2.User can monitor the actual temperature and pressure from the graph on the monitor.
- 4Plug and Play
LOWTEM Series’ warming up time is very rapid (Maximum 15 min) after main power is on, so that standby power consumption is zero during off-duty or overnight.
- 5USB History Memory
LOWTEM Series’ sterilization history can be downloaded to your USB memory stick, and maintained at your convenience. Furthermore, it can be remote-controlled by its own out-of-state network system.
- 6Automatic PM Alarm System
LOWTEM Series provide alarms to prevent from irregular maintenance.
Automatic PM Alarm System is very useful for users and engineers to be noticed.

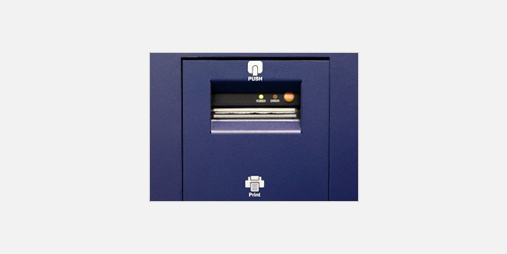

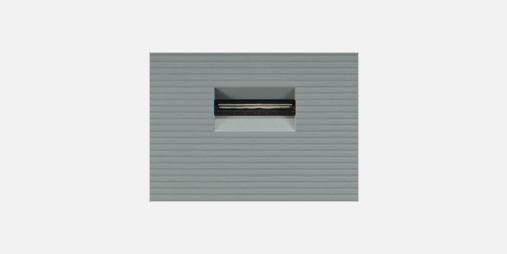

- 7Built in Thermal Printer, Printout with Actual Cycle Information
Built-in thermal printer uses 60mm (Ø) Roll paper. Users do not need to replace it often.
The printout from this printer provides temperature, pressure with the cycle graph on the paper.
- 8Login Function
LOWTEM Series provide User ID and PW, so that hospital can manage users who access the sterilizer.
- 9Monitoring System
1.Cycle temperature, pressure, and sterilization cycle status can be remotely monitored.
2.Thanks to the monitoring system, LOWTEM Series can be maintained and upgraded easily.

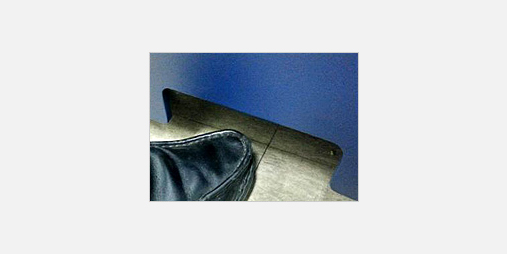

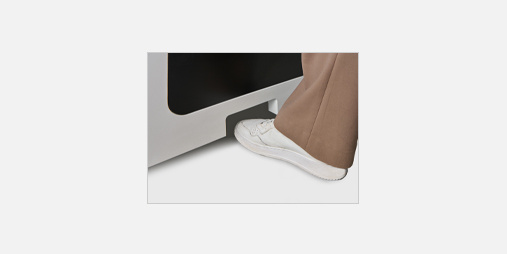

- 10Open/Close Foot Switch
LOWTEM Smart 150/150D has hands-free door operating system. With Foot Switch, user can easily open and close the chamber door.

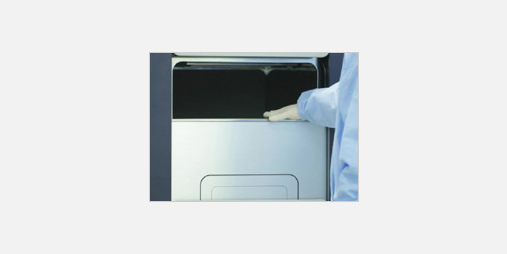

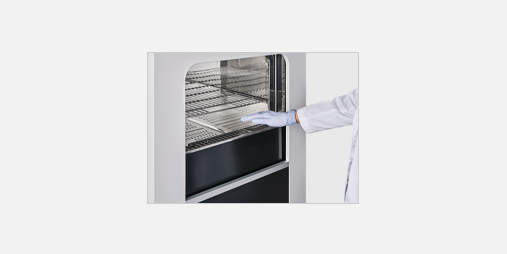

- 11Sliding Door
1.LOWTEM Smart 150/150D adopts hands-free sliding door operating system. User can easily load the items.
2.This sliding door adopts a dual structure of safety.
3.User can easily open this sliding door using LCD touch, and Foot Sensor.
|Sterilizing Agent||Hydrogen Peroxide|
|15 Cycles / Bottle|
|Total Cycle Time||Quick||40+5 Min|
|SAL (Sterility Assurance Level)||10-6|
|By-Products||Oxygen And Vapor Water Only|
|Lumen Claims||Rigid Lumen & Flexible Lumen, Endoscopes|
|Dimensions||Overall||700mm(W) x 1640mm(H) x 980mm(D)|
|Chamber||450mm(W) x 450mm(H) x 760mm(D)|
|Volume||Total : 150 Liters
Usable : 136 Liters / 450mm(W) X 400mm(H) X 760mm(D)
|Control||Microprocessor & Windows CE Embedded|
|Cycle Information||Screen, Printer, USB, 100/10Mbps Ethernet(Option)|
|PM Cycle||Automatic Alarm & Setup|
|Electrical||110V/220V, 50/60Hz, 1 Phase, 3000W|
|Installation Requirements||Front : 100cm
Rear, Left Side, Right Side : 10cm
Placement : Built-in Wheels Provide Mobility
|Room Conditions||5 ~ 40℃, 0 ~ 95%RH(Non-Condensing)|
|Printer||Built-in Thermal Printer(60Ø Roll paper)
Cycle Parameters (Temp, Pressure, Time, Daily&Total Cycle, Etc)
Alarm & Error Display
|Others||Emergency Stop(Front), Operator ID Login, Self-Diagnosis,
Multi-Language, RFID Coding System
