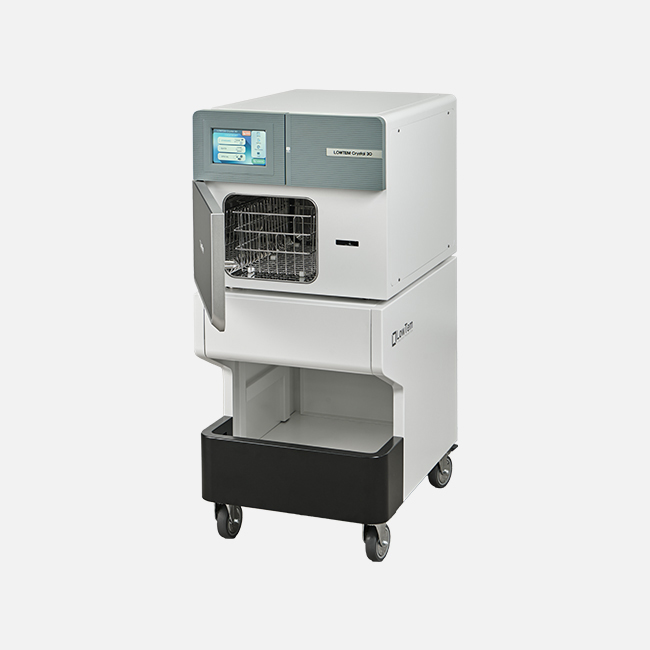

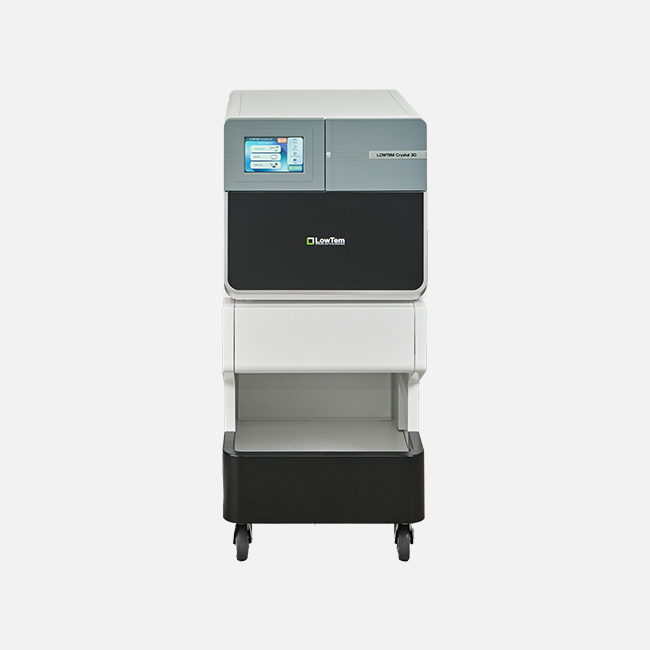

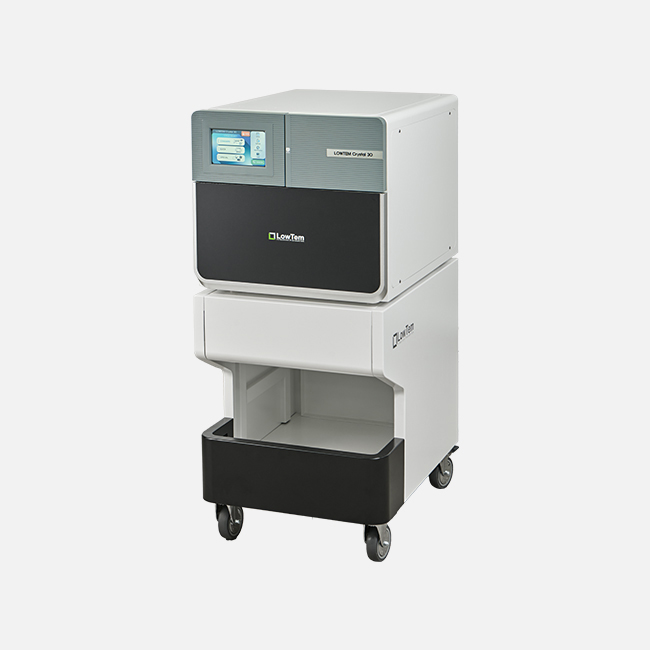

LOWTEM Crystal 30
- 1. Rapid Warmup & Dry System
2. Convenient and Safe Sterilizing Agent
3. Oilless Pump
4. 7” full touch LCD, Easy Monitoring the Cycle Information
5. Plug and Play
6. USB History Memory
7. Automatic PM Alarm System
8. Login Function
9. Monitoring System
10. Table-top Model
11. Auto Interlock & Monitor Touch Door Open System
12. Useful Cart
This product is a medical device, please read the precautions and instructions for use carefully.
Product Features
-
- 1Rapid Warmup & Dry System
-
1.The world’s first patented “Rapid Warmup and Dry System” allows to overcome the humidity-related problem.
2.LOWTEM Series automatically removes residual moisture through the enhanced drying performance for medical devices in warm up phase.
3.“Rapid Warmup and Dry System” gets rid of Cold Points and maintains same temperature inside chamber, which is very effective for sterilizing the complicated medical devices with its strong penetration power.
-

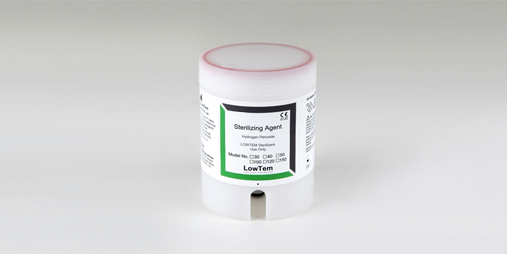

- 2Convenient and Safe Sterilizing Agent
-
1.“Tank type” sterilant is safe for users to store, to deliver, and to use.
2.The automatic system for changing and installing sterilant tank is convenient and safe for users.
3.LOWTEM Series’ tank type sterilant does not need to be replaced often, as it can be used scores of times
-
- 3Oilless Pump
-
1.LOWTEM Crystal 30 uses an Oil-free pump. It can eliminate regular PM for Oil and Oil mist filter exchanges.
-

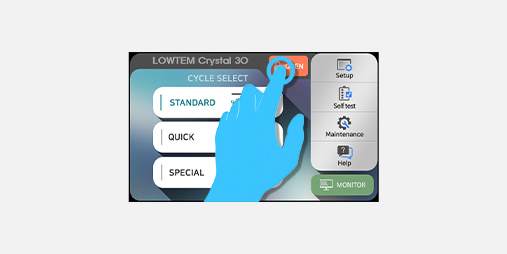

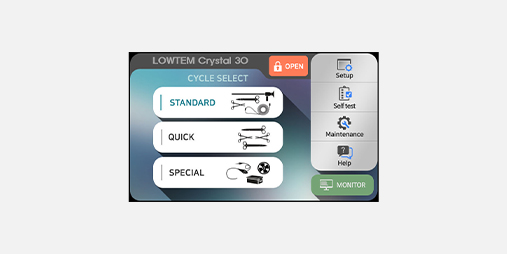

- 47”full touch LCD, Easy Monitoring the Cycle Information
-
1.LOWTEM Series’ 7”full touch LCD monitor provides with all functions of the machine using simple letters, pictures, and icons.
2.User can monitor the actual temperature and pressure from the graph on the monitor.
-
- 5Plug and Play
-
LOWTEM Series’ warming up time is very rapid (Maximum 15 min) after main power is on, so that standby power consumption is zero during off-duty or overnight.
-
- 6USB History Memory
-
LOWTEM Series’ sterilization history can be downloaded to your USB memory stick, and maintained at your convenience. Furthermore, it can be remote-controlled by its own out-of-state network system.
-
- 7Automatic PM Alarm System
-
LOWTEM Series provide alarms to prevent from irregular maintenance.
Automatic PM Alarm System is very useful for users and engineers to be noticed.
-
- 8Login Function
-
LOWTEM Series provide User ID and PW, so that hospital can manage users who access the sterilizer.
-
- 9Monitoring System
-
1.Cycle temperature, pressure, and sterilization cycle status can be remotely monitored.
2.Thanks to the monitoring system, LOWTEM Series can be maintained and upgraded easily.
-

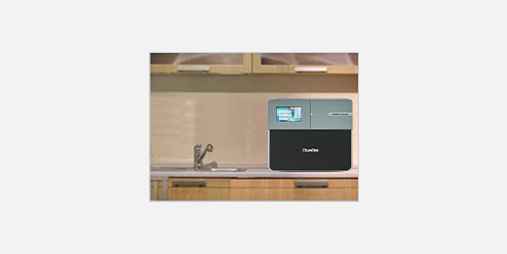

- 10Table-top Model
-
LOWTEM Crystal 30 is a very compact machine. It can be easily installed on table top.
-

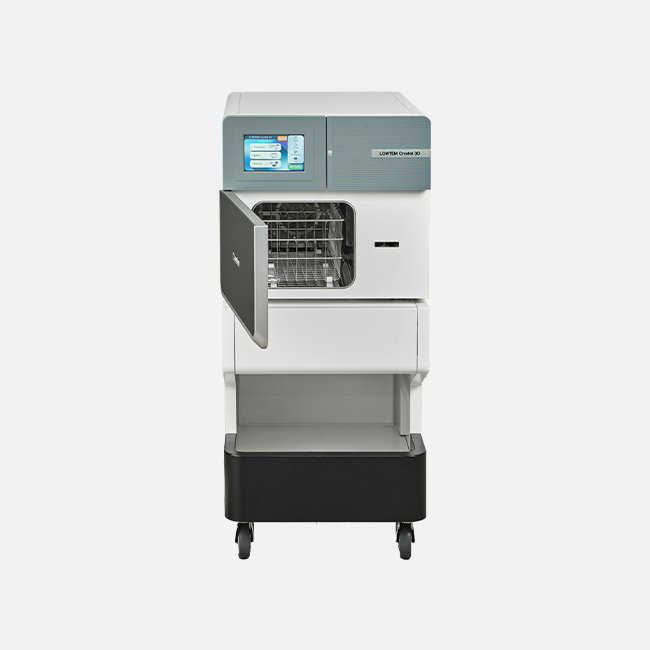

- 11Auto Interlock & Monitor Touch Door Open System
-
One gentle push makes the chamber door locked, and the chamber door can be opened automatically when user only touches the monitor. LOWTEM Series’ extraordinary user friendly functions provide convenient and safe environment.
-

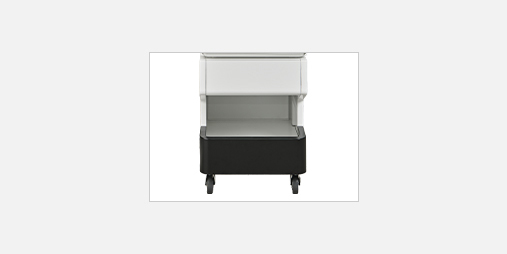

- 12Useful Cart
-
LOWTEM Crystal 30 has a convenient removable cart. This cart has a shelf for accessories.
Product specification
| Item | Description | |
|---|---|---|
| Sterilization | Hydrogen Peroxide | |
| 40 Cycles / Bottle | ||
| Total Cycle Time | Quick | 30±5 Min |
| Standard | 40±5 Min | |
| Special | 50±5 Min | |
| Cycle Temperature | 55±5℃ |
|
| SAL (Sterility Assurance Level) | 10-6 | |
| By-Products | Oxygen And Vapor Water Only | |
| Lumen Claims | Rigid Lumen & Flexible Lumen,Endoscopes | |
| Chamber | Type | Rectangular |
| Material | Stainless Steel(SUS) | |
| Dimensions | Overall | 530mm(W) x 500mm(H) x 735mm(D) |
| Chamber | 260mm(W) x 220mm(H) x 590mm(D) | |
| Volume | Total : 33 Liters | |
| Usable : 28 Liters / 260mm(W) X 220mm(H) X 500mm(D) | ||
| Weight | 90kg | |
| Control | Microprocessor & Windows CE Embedded | |
| Cycle Information | Screen, Printer |
|
| PM Cycle | Automatic Alarm & Setup | |
| Electrical | 220V, 50/60Hz, 1 phase, 2000W |
|
| Installation Requirements | Front : 100cm Rear, Left side, Right Side : 10cm Placement : Built-in Wheels Provide Mobility |
|
| Room Conditions | 5 ~ 40℃, 0 ~ 95%RH(Non-Condensing) | |
| Others | Emergency stop(front), Operator ID Login, Self-Diagnosis, Multi-Language, RFID Coding System |
|
| Cart(Option) | 530mm(W) x 760mm(H) x 710mm(D)/30kg | |
